Aluminum coil stock thickness
Quick Details
Place of Origin: Hunan, China
Brand Name: Huabond
Model Number: H-C117
Application: Decoration
Thickness: 0.01-1.0mm
Width: 20-1500mm
Alloy Or Not: Alloy
Grade: 5000 Series
Surface Treatment: Coated
Color: RAL /Pantone color
Aluminum coil: 3003 3004 3104 3105
Length: 500-10000mm
Panel thickness: 3.0mm-6.0mm
Aluminum Thickness: 0.15-0.50mm
Surface: Coated, Embossed
Supply Ability: 25000 Ton / Per Month
Packaging Details: wood pallet
Port: Shanghai port
Lead Time: Shipped in 18-22 days after payment
Product Description
| Aluminum Coil Specification |
| Aluminum thickness | 0.016mm~1.0mm | Coating finish | PVDF, Polyester, Acrylic |
| Aluminum max width | 2000mm | Standard width | 1240mm |
| Coil's standard diameter | 1200mm | Weight | 2.5T/coil 3.0 T/coil |
| Interior diameter | 105mm, 405mm, 505mm | Gloss | Customized |
| Aluminum Alloy | A1050, A1100, A3003, A3005, A3105, A5005, A6060, A8011etc. |
| | |
| Coating Thickness |
| |
| Coating type | Aluminum thickness(mm) | Coating thickness(um) |
| Top Coating | 0.02-0.36 | 11-12 |
| 0.04-0.05 | 12-14 |
| 0.06-0.09 | 14-15 |
| 0.10-0.15 | 15±1 |
| 0.17-0.30 | 16±1 |
| 0.35-0.50 | 17±1 |
| Primer Coating | 0.02-0.08 | 9 - 10 |
| 0.10-0.25 | 10 - 11 |
| 0.28-0.50 | 12±1 |
| Embossed Coating | 0.23-0.35 | 15 - 16 |
| 0.35-0.60 | 16 - 18 |
| Basic Information: |
| Products Name | Quality Embossed Aluminum Coil in Different Sizes |
| origin | Hunan, China | Brand | HUABOND |
| Width | 600-1500mm
| Max. width | 1500mm
|
| Max. length | 10000mm
| Surface | PVDF or PE |
| Aluminum Alloy | 1100,3003,5005,ect
| Cardboard Core Diameters | 405/505
|
| Warranty | 15-20 years | Aluminum thickness | 0.15 - 0.6mm |
Advantages:
The color is bright, colorful and material is durable. And the range of the patterns as well as the picture could make the surface feel the depth of space continuous. At the same time, color embossed aluminum panel has a wonderful effect of translucence and ventilation. In addition, the changeable of the color could make the surface feel movement and lines smothering.
Test Standard
1) Coating hardness (pencil hardness) more than 2H.
2) Coating adhesive: no lower than 1 grade, our standard is 0 grade.
3) Impact resistance: No cracking and peeling (50kg/cm, ASTMD-2794:1993)
4) Flexibility (T-bend): AC, PE coating is 2T, PVDF coating is 3T.
5) MEK resistance: AC coating more than 100times, PE, PVDF coating more than 150 times.
6) Boiling water resistance: No change (2 hours).
7) Color tolerance: ΔE≤0.5

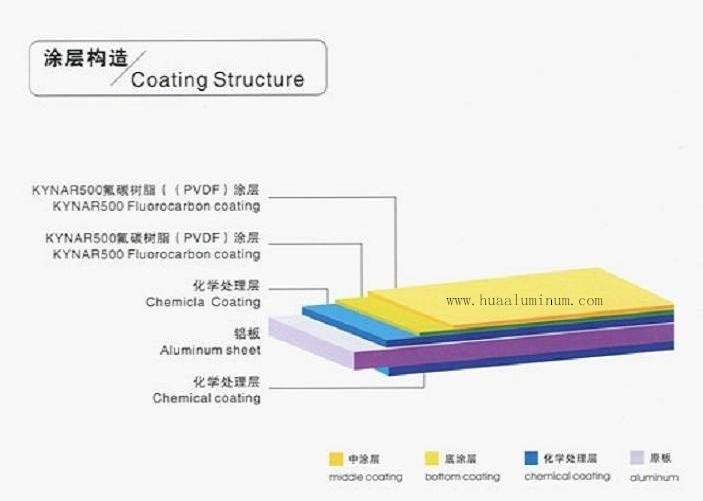

PVDF (Fluorine- Carbon) Coating Coil:
By utilizing Kynar500 (70% Polyvinylidene Difluoride), with a full advanced automatic production line and strict quality control process, HUABOND coated Aluminum Coil feature with super durability and weather resistance, and better properties to anti-acid, and anti-alkali, keeping more than 15 years without fading in using as external wall cladding.
PE(Polyester) Coating Coil:
By utilizing excellent Polyester coating, with UV-resistant featured by high molecular polymer as monomer and addition alkyd, HUABOND Coated Aluminum Coil can be classified matt and glossy according to the colors. The compact molecule structure assures paint surface luster and smooth, and squares good printing on the panel surface. With a warranty of 8-10years for weather resistance, it is specially applied to internal decoration and sign board.
Applications:
Interior applications: wall cladding, ceilings, bathrooms, kitchens and balconies, shutters, doors...
Exterior applications: wall cladding, facades, roofing, canopies, tunnels, column covers, renovations...
Advertisement and market applications: display platforms, signboards, fascia, shop fronts...
